Multi-Physics Simulation India
Coupled Simulation Engineering.
Some engineering challenges cannot be solved through isolated simulations. APJ 3D delivers synchronized multi-physics simulation services across thermal, structural, CFD, electromagnetic, and vibration domains.
Why Multi-Physics Coupling Matters
Compare single-discipline verification silos against synchronized multi-domain engineering interactions.
Single Physics Silos
Thermal → Results. Structural → Results. CFD → Results. Disconnected solvers miss critical secondary failure modes caused by domain interactions.
Synchronized Physics Network
Thermal ⇄ Structural ⇄ Fluid ⇄ NVH ⇄ Electromagnetic. Simultaneous bi-directional data exchange captures real-world operating physics.
Hexagonal Physics Network Matrix
Six interconnected domains forming a comprehensive coupled simulation environment.
Thermal + Structural
Thermal structural simulation India
- Conjugate Heat Transfer
- Non-linear Expansion
- Thermal Fatigue Life
Fluid + Structure
Fluid structure interaction India
- One-way / Two-way FSI
- Transient Pressure Loads
- Hydro-elastic Warping
Electromagnetic + Thermal
- Electric Motor Losses
- Joule Heating Mapping
- Battery Pack Thermal Runaway
NVH + Structural
- Vibration Acoustics
- Harmonic Radiation
- Resonance Mitigation
Coupling Strategy
- Boundary Surface Mapping
- Multi-scale Mesh Transfer
- Synchronized Time Stepping
Engineering Correlation
- Bench Test Correlation
- Validation Documentation
- Multi-Physics Sign-off

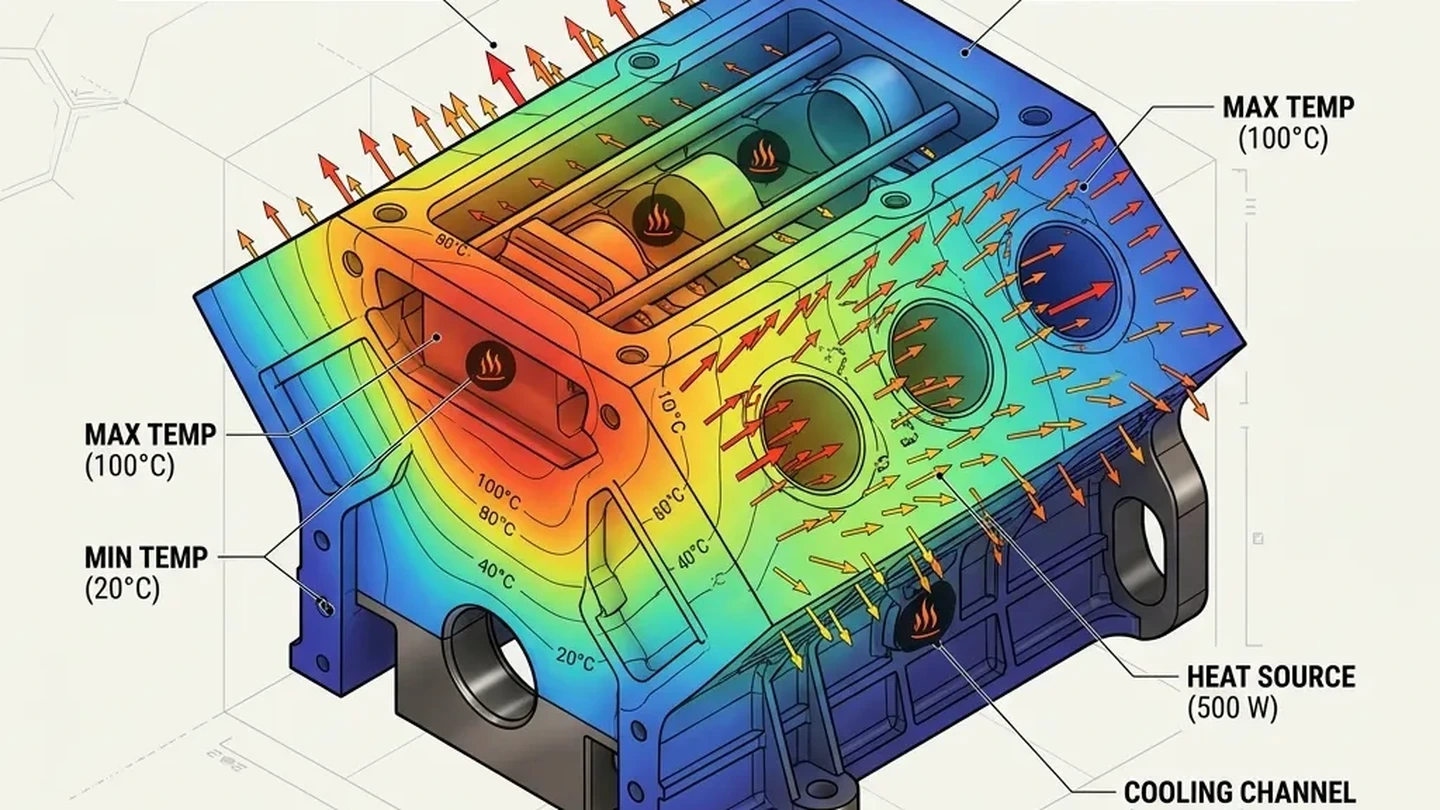

Interactive Energy Flow Architecture
Real-time continuous feedback loop demonstrating multi-physics energy exchange.
As heat transfers from electronics or combustion chambers into structural brackets, thermal expansion creates localized strain tensors. This deformation alters external CFD aerodynamic channels, modifying surface pressure profiles dynamically.
Multi-Physics Simulation Storyboard Track
Cinematic horizontal progression solving a coupled thermal-stress challenge on an EV battery enclosure.
Coupled Enclosure Sign-off
Identified a 64°C localized thermal hotspot that induced 210 MPa warping near seal boundaries, preventing catastrophic ingress.
Multi-Physics Solver Ecosystem
Orbiting consulting workflow supported by Pan-India engineering leadership.
Pan-India Support Hub
Dedicated presence across Hosur HQ, Bangalore, Chennai, Pune, and Delhi NCR.
What is Multi-Physics Simulation Services India?
CAE Simulation (FEA & CFD) is the numerical modeling of physical systems to predict structural stress, thermal dissipation, fluid flow, crashworthiness, and dynamic fatigue life under real-world operational loads.
When to Select This Service
Choose CAE simulation during early product development to virtually validate design integrity, optimize part weight, verify safety factors, and eliminate physical prototype failure risks before committing to production tooling.
Technical Capabilities & Verification Standards
Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.
| Engineering Parameter | APJ 3D Capability & Precision Range | Compliance Standard / Verification |
|---|---|---|
| Simulation Disciplines | Linear/Non-Linear Structural FEA, Thermal Analysis, CFD Fluid Dynamics, Crash & Impact, Fatigue & Durability, NVH | ISO 9001 / NAFEMS Validated Procedures |
| Solvers & Software | ANSYS Mechanical, Abaqus, Altair HyperWorks/OptiStruct, Moldflow, OpenFOAM, LS-DYNA | High-Performance Computing (HPC) Clusters |
| Material Models | Elastic-Plastic metals, Hyperelastic rubbers, Composites, Viscoelastic polymers, Temperature-dependent curves | Tested Material Property Databases |
| Mould Flow Capabilities | Fill time, injection pressure, weld line prediction, sink marks, cooling circuit efficiency, volumetric shrinkage & warpage | Autodesk Moldflow Insight Validated |
| Deliverables | Comprehensive Engineering Reports, Von Mises Stress Plots, Factor of Safety (FoS) Maps, Deformation Animations, Optimization STEPs | Actionable Design Recommendation Summaries |
| Model Scale | From precision micromixers and plastic clips up to full vehicle chassis and industrial equipment weldments | Multi-Million Degree-of-Freedom Meshes |
| Turnaround Time | 3 to 7 business days for standard FEA/CFD studies; 24–48h for urgent gate location & fill checks | Dedicated Senior CAE Analysts |
Frequently Asked Questions
What information is required to start an FEA or CFD simulation?
What information is required to start an FEA or CFD simulation?
How do you validate the accuracy of simulation results?
How do you validate the accuracy of simulation results?
How can Moldflow simulation save tooling costs for plastic parts?
How can Moldflow simulation save tooling costs for plastic parts?
Can you optimize parts for lightweighting and material reduction?
Can you optimize parts for lightweighting and material reduction?
What is included in the final simulation report?
What is included in the final simulation report?
Real Engineering Doesn’t Separate Physics. Neither Should Your Simulation.
Whether you’re solving thermal structural simulation India, fluid structure interaction India, or complete coupled simulation engineering India challenges, APJ 3D delivers accurate multi-physics simulation services India capturing interactions single-domain analyses miss.
