PERFORMANCE ENGINEERING OPTIMIZATION

Performance Driven Design Improvements

Transform underperforming products into field-proven, highly optimized designs. We specialize in investigating performance gaps, uncovering root causes, and executing performance-based product redesigns.

Investigate Product Performance

The Hidden Performance Gap

When the product meets the specification on paper, but fails expectations in the real world.

Specification Passed

Theoretical CAD Model

Thermal Variation

Assembly Deviation

Wear & Fatigue

Manufacturing Tolerance

Performance Failed

Physical Execution

Digital Forensics Lab

Identifying exactly where the performance gap is originating from.

As-Built Scan Data

Capture physical reality via high-accuracy 3D scanning.

Failure Analysis

Macro and micro examination of structural failure zones.

FEA Simulation

Recreate real-world operational loads virtually.

Thermal Behaviour

Heat dissipation and thermal expansion analysis.

Optimization Engine

Design Optimization For Performance: Engineering causes translated into calculated solutions.

Performance Issue

Structural Crack

Engineering Cause

Stress Concentration

Optimized Solution

Radius Optimization

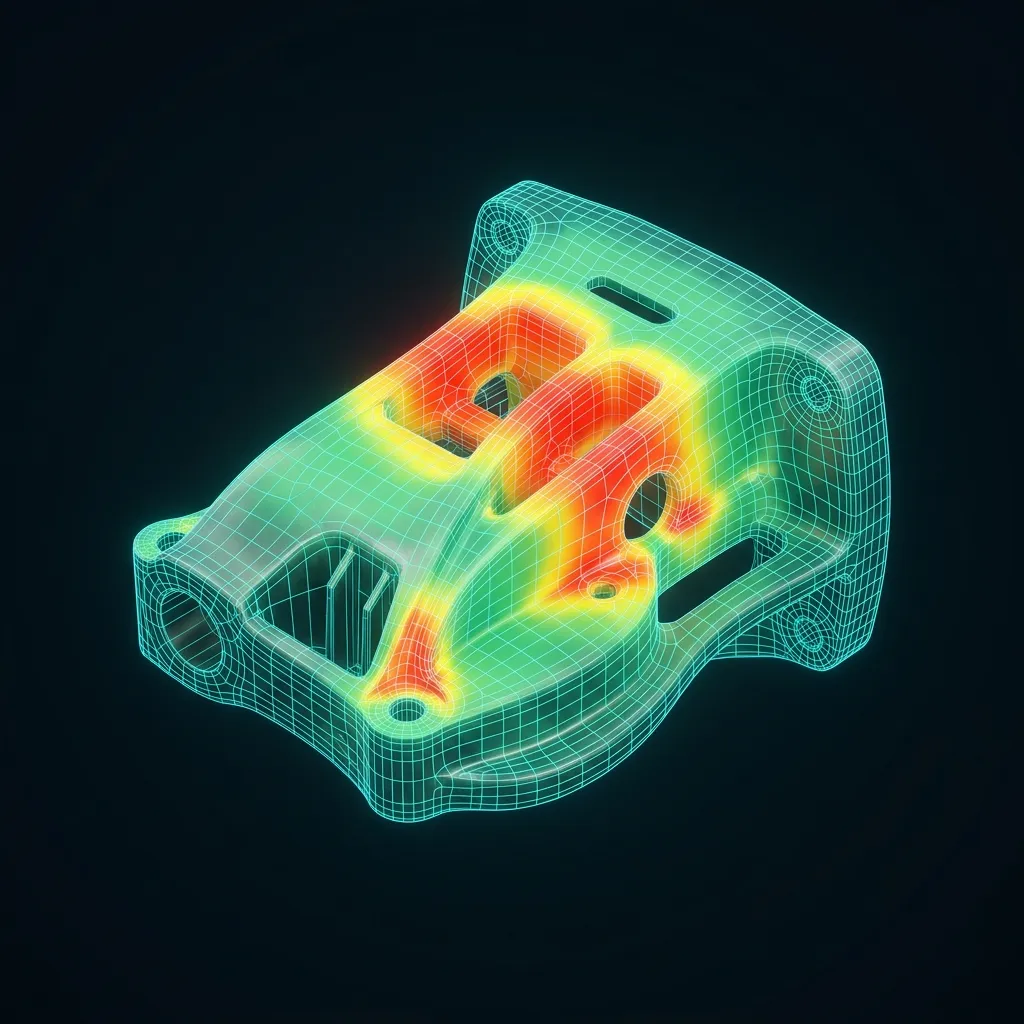

Live Engineering Heatmap

Engineering Performance Enhancement Across The Entire Design Space

Under-Engineered

High stress concentration requiring reinforcement.

Optimized Zone

Perfect load distribution achieved through redesign.

Over-Engineered

Excess mass detected. Material can be removed safely.

Engineering Evidence Vault

What The Performance Improvement Study Delivers

[.STL]

As-Built Scan Data

Precise 3D digital replica of the physical component.

[.PDF]

Failure Analysis Report

Comprehensive breakdown of physical failure modes.

[.SIM]

FEA Results

Virtual stress and thermal simulations validating issues.

[.CAD]

Design Recommendations

Optimized 3D geometry ready for manufacturing.

[.XLS]

Performance Prediction

Calculated improvements in lifespan and durability.

[.DOC]

Implementation Plan

Step-by-step guide to deploying the optimized design.

Real-World Performance Recovery

A proven methodology based on confidential project execution.

Field Complaint

Premature failure detected during standard operational cycles.

Digital Digitisation

Failed part 3D scanned for dimensional deviation mapping.

Root Cause Found

FEA isolates stress concentration zone mismatching the CAD intent.

Design Modified

Geometry optimized, structural ribs added, radii smoothed.

Validation & Recovery

New component achieves 300% lifespan increase in field trials.

Technical Service Overview Reviewed by APJ 3D Engineering Desk • Updated September 2026

What is Performance Driven Design Engineering?

Performance Driven Design Engineering is a diagnostic and redesign process that investigates field or test performance gaps in an existing product, isolates the root cause through testing and simulation, and executes a targeted redesign to convert an underperforming product into a field-proven, optimized design.

When to Select This Service

Choose performance driven design when a product is underperforming in the field, failing to meet target specifications, or when you need a root-cause investigation and evidence-based redesign rather than a guess-and-check fix.

Performance Driven Design Engineering Technical Specifications

Technical Capabilities & Verification Standards

Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.

Engineering Parameter	APJ 3D Capability & Precision Range	Compliance Standard / Verification
Field Complaint Intake	Investigation begins from a documented premature failure detected during standard operational cycles	Root-Cause Investigation Entry Point
Digital Digitisation	Failed part 3D scanned for dimensional deviation mapping against the original CAD intent	Scan-Based Deviation Mapping
Root Cause Analysis	FEA isolates the stress concentration zone responsible for the performance gap	FEA Stress Concentration Isolation
Design Modification	Geometry optimized with structural ribs added and radii smoothed to resolve the identified failure mode	Performance-Based Redesign
Validation & Recovery	New component validated in field trials against the original underperforming design	Field Trial Validation
Performance Investigation Scope	Investigates performance gaps where products meet specification on paper but fail expectations in real-world use	Performance Gap Root-Cause Program

FAQ

Frequently Asked Questions

Can you perform 3D scanning on-site at our manufacturing plant?

Yes. Our engineers travel across India with portable HandySCAN 3D, optical CMMs, and laser trackers to scan parts, dies, tooling, and vehicle bodies directly on your shop floor without disassembly.

How do 3D scanning and reverse engineering differ?

3D scanning captures the raw physical surface geometry as a dense polygonal mesh (.STL). Reverse engineering takes that scan mesh and reconstructs a fully parametric, editable 3D CAD model (STEP, IGES, SolidWorks, NX) with design intent and standard geometric features.

What is a color deviation inspection map?

A color deviation map is a 3D visual comparison of the scanned physical part overlaid against the nominal CAD model. Color gradients (green = in tolerance, red = excess material, blue = undersize) immediately highlight manufacturing warpage, shrinkage, or machining errors.

Can dark, shiny, or transparent surfaces be scanned?

Yes. Our blue laser and structured light scanners handle dark and metallic surfaces directly. For highly reflective chrome or clear glass, a temporary sublimating scan spray is applied that evaporates completely without residue.

What accuracy can we expect for automotive and aerospace components?

We achieve volumetric accuracy down to 0.020 mm to 0.040 mm depending on part size and sensor setup, fully verified against VDI/VDE 2634 and ISO 10360 metrology standards.

Ready to Maximize Your Product's Performance?

Expert performance optimization and forensic engineering in India. Leverage our advanced analysis and engineering design services to eliminate bottlenecks.
