RECOVERING LOST ENGINEERING INTELLIGENCE
Legacy Part Reverse Engineering Service India
Scan, Reconstruct, and Manufacture. We transform undocumented, obsolete, and legacy physical parts into fully usable, parametric digital engineering assets ready for production.
The Problem Wall
What Is Legacy Part Reverse Engineering — and Why Does It Matter Now?
01

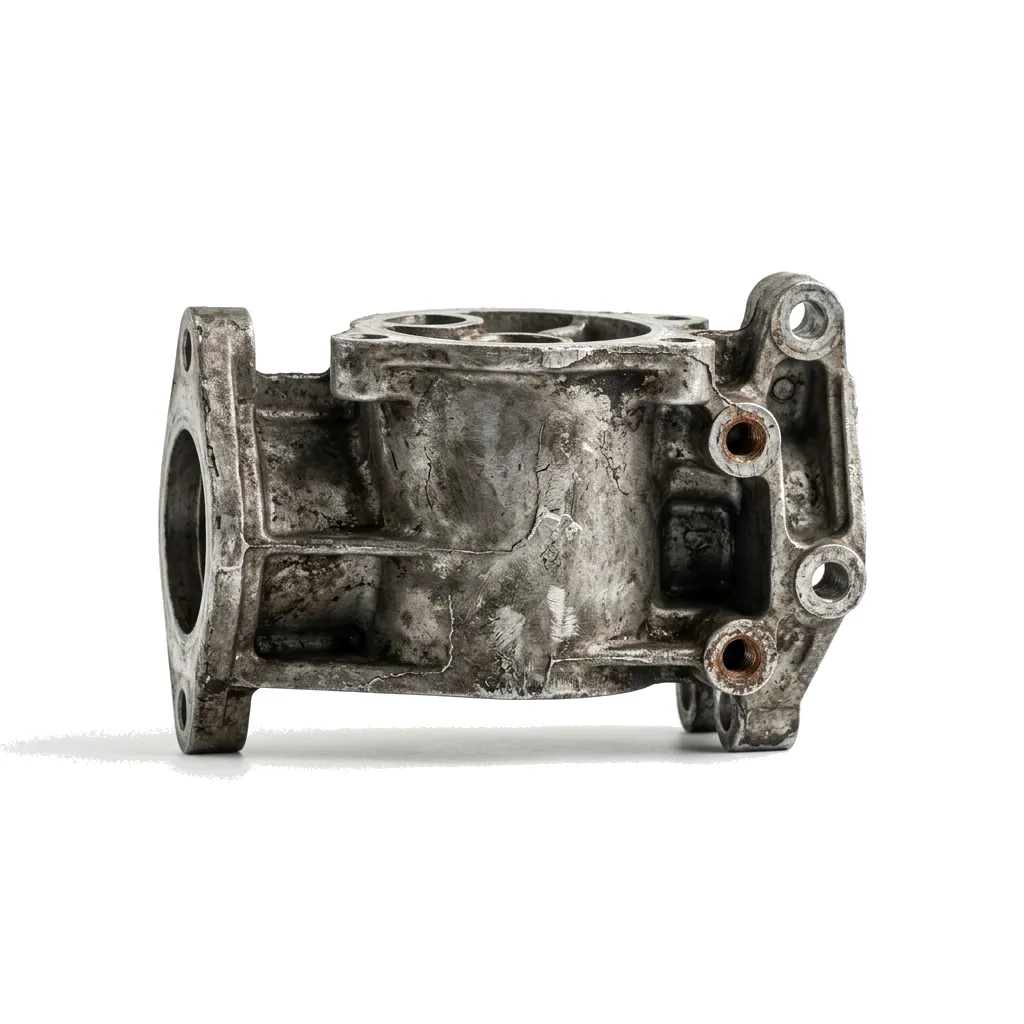

OEM Closed Down
Original manufacturer no longer supports or supplies the critical parts needed for operation.
02
No Drawings Available
Complete loss of 2D/3D engineering data, preventing direct remanufacturing of the component.
03
Machine Downtime
A broken legacy component has halted critical production operations.
04
Immediate Replacement

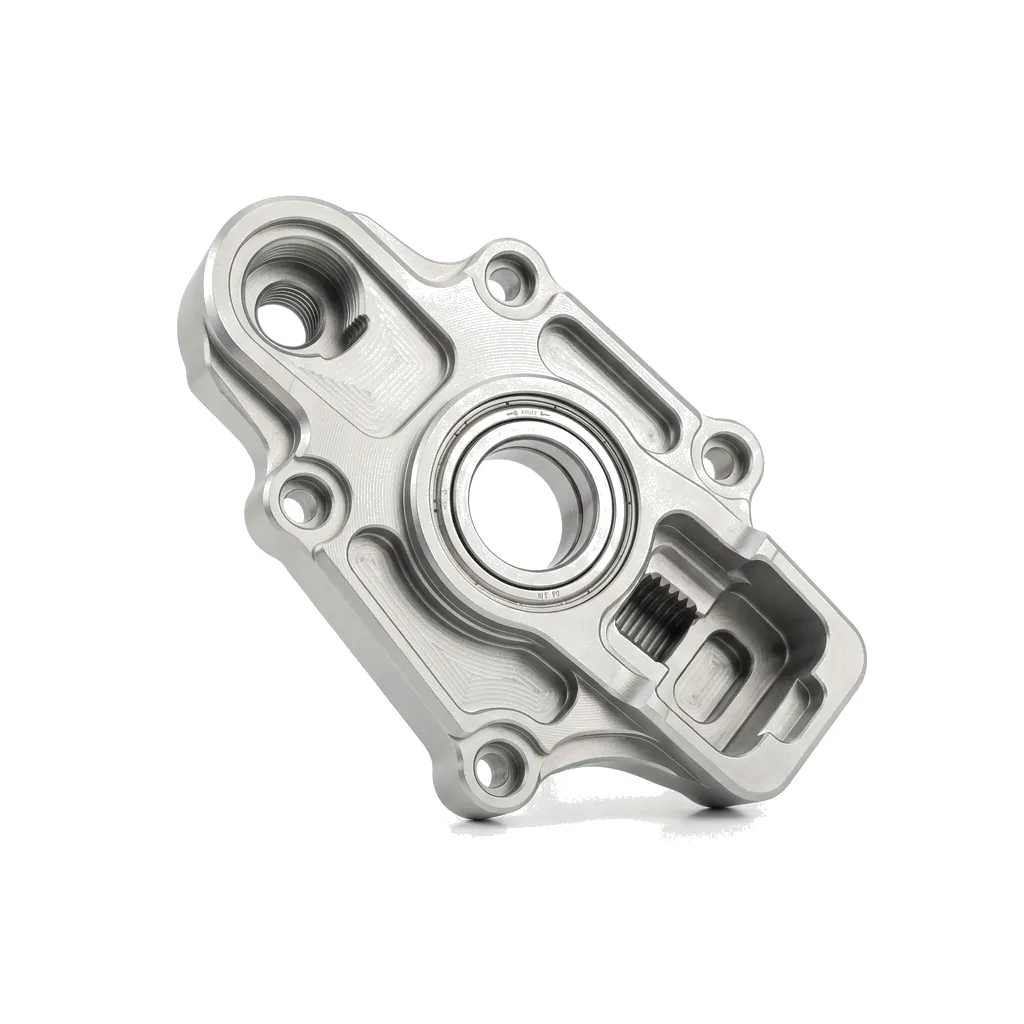

Need an urgent drop-in replacement with identical fit, form, and function.
Critical Intervention
The Three Scenarios Where Legacy Reverse Engineering Is Critical
Legacy Reverse Engineering
Production Breakdown
Immediate response to restore failed critical components.
Obsolescence Management

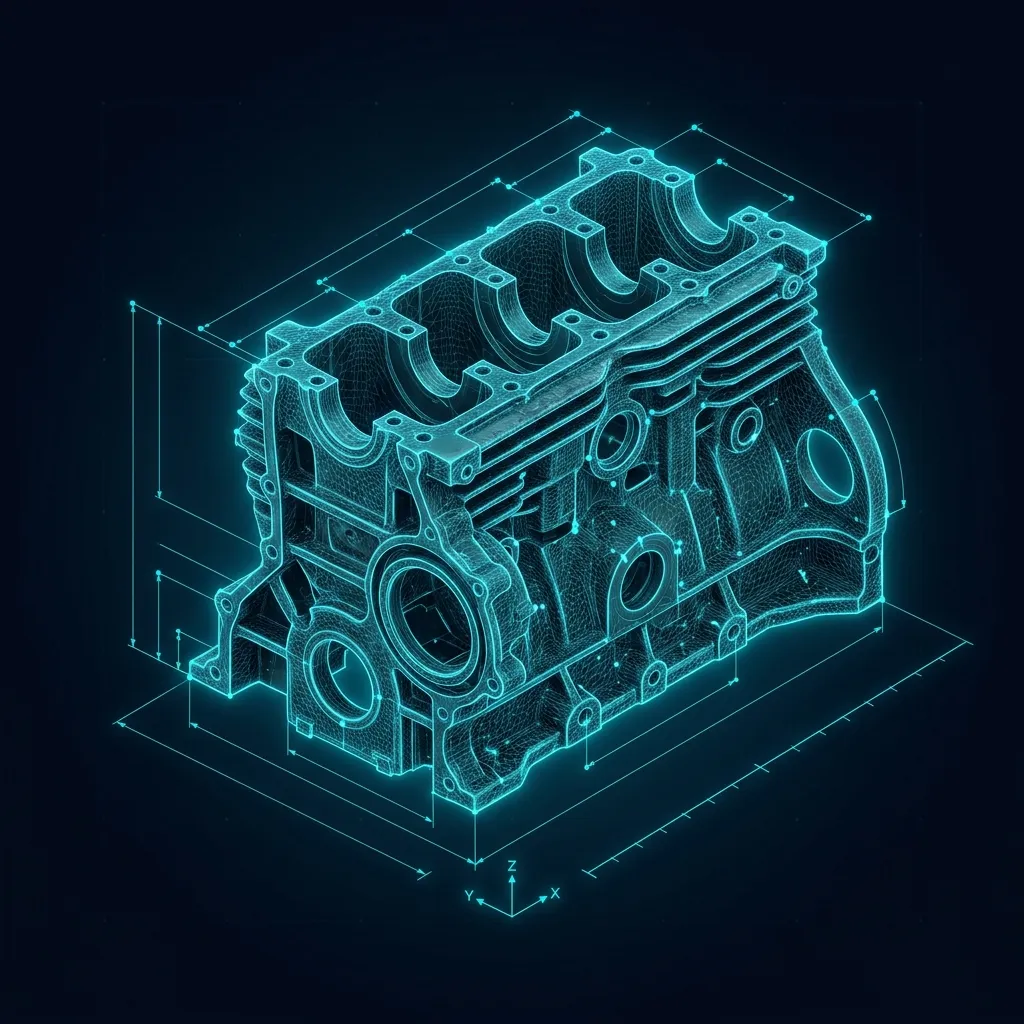

Proactive digitisation of aging inventory before failure.
Design Improvement
Upgrading materials and geometry of old parts.
Engineering Reconstruction
Before vs After Comparison

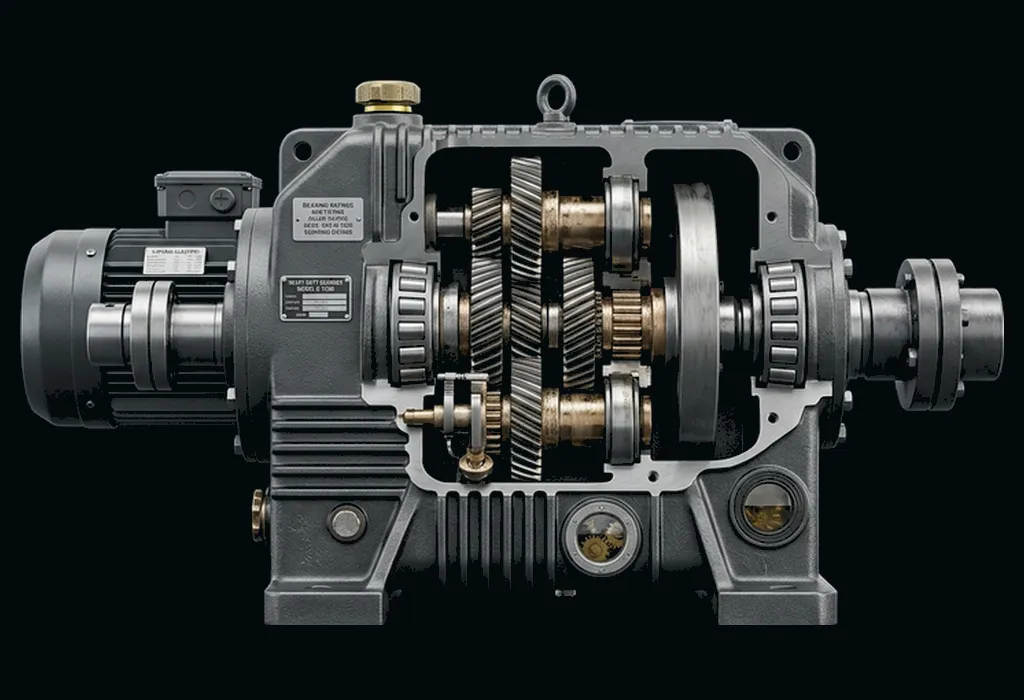

Actual APJ CAD reconstruction example
Cross-Sector Applications
Industries We Serve
Automotive
Tool & Die
SPM
Legacy
Reverse
Engineering
Reverse
Engineering
Manufacturing
Aerospace
Medical
Engineering Credibility
Why Choose APJ 3D?
4000+
Projects
1000+
Clients
6+
Years
9
Industries
PAN INDIA
Coverage
| Feature | APJ 3D | Generic Scanning Vendors |
|---|---|---|
| Parametric CAD Deliverables | ✓ Yes | Often No (Dumb solids) |
| Deviation Validation Reports | ✓ Yes | Limited |
| Multiple Scanner Platforms | ✓ Yes (FARO, Creaform, etc.) | Limited to one brand |
| Onsite Scanning Service | ✓ Yes (Pan India) | Sometimes |
Explore Our Engineering Network
Legacy Part Reverse Engineering integrates seamlessly with our other metrology and design capabilities.
Technical Service Overview
Reviewed by APJ 3D Engineering Desk • Updated September 2026
What is Legacy Part Reverse Engineering Service India?

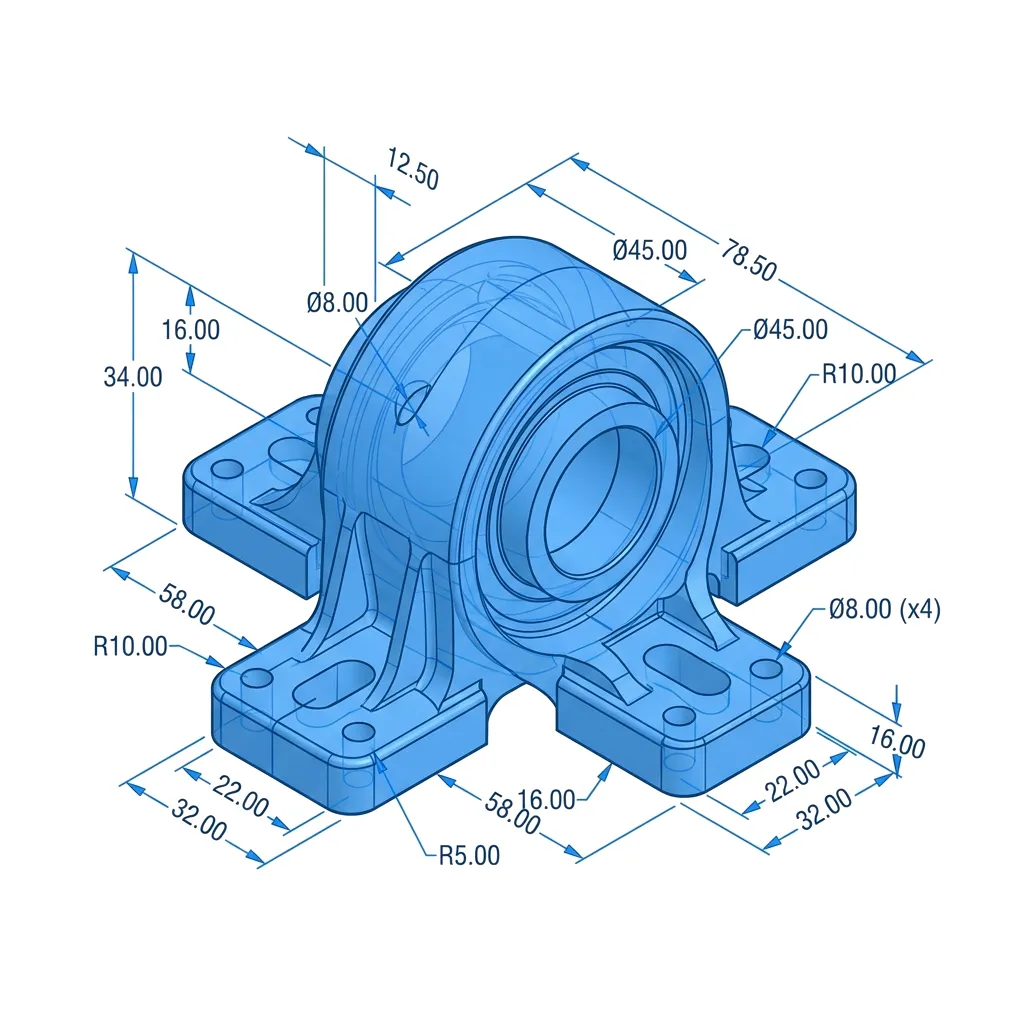

Reverse Engineering is the structured extraction of design intent from 3D scan data (point clouds/meshes) to rebuild fully editable, parametric 3D CAD models and production drawings for legacy, obsolete, or undocumented parts.
When to Select This Service
Choose reverse engineering when replacing obsolete machinery components with no existing drawings, recreating worn tooling and stamping dies, benchmarking competitor hardware, or redesigning aftermarket automotive accessories.
Legacy Part Reverse Engineering Service India Technical Specifications
Technical Capabilities & Verification Standards
Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.
| Engineering Parameter | APJ 3D Capability & Precision Range | Compliance Standard / Verification |
|---|---|---|
| Reconstruction Techniques | Parametric Feature Modeling, Hybrid Surface-Solid Modeling, Class-A B-Rep Surfacing | Design Intent Extraction |
| Scan-to-CAD Deviation | Surface deviation within ±0.025 mm to ±0.050 mm of scan data (Geometry dependent) | Geomagic Design X / Geomagic Control X |
| Supported Part Types | Castings, forgings, stampings, injection molded plastics, turbine blades, automotive body panels, tooling dies | Micron to Multi-Meter Scale |
| Output Formats | Native SolidWorks (.sldprt), Siemens NX (.prt), CATIA (.CATPart), STEP (.stp), IGES (.igs), Parasolid (.x_t) | Fully Editable Feature Trees |
| Manufacturing Detailing | Draft angle optimization, wall thickness regularization, fillet reconstruction, GD&T 2D blueprints | DFM / Tooling Ready |
| Quality Assurance | 3D Color Map Scan-to-CAD overlay deviation report verifying geometric fidelity | 100% Deviation Inspected |
| Turnaround Time | 2 to 5 business days for standard complex mechanical components and assemblies | Pan-India On-Site 3D Scanning Available |
FAQ
Frequently Asked Questions
What is the difference between raw scan data (STL) and a reverse engineered CAD model?
What is the difference between raw scan data (STL) and a reverse engineered CAD model?
An STL mesh is a dead surface composed of millions of triangles that cannot be easily edited, dimensioned, or machined. A reverse engineered CAD model is a parametric solid (STEP/SolidWorks) with editable sketches, holes, fillets, and planes ready for manufacturing.
How do you handle worn or damaged areas on physical parts?
How do you handle worn or damaged areas on physical parts?
Our engineers analyze design symmetry, geometric primitives, and nominal fit interfaces to reconstruct the part to its original as-designed condition, eliminating physical wear and damage.
Can you reverse engineer internal features that cannot be scanned optically?
Can you reverse engineer internal features that cannot be scanned optically?
Yes. For complex internal channels and hollow castings, we combine optical scanning with physical silicone casting sectioning or Industrial CT scanning to capture internal wall profiles.
Do the reverse engineered models come with native feature trees?
Do the reverse engineered models come with native feature trees?
Yes. Upon request, we provide fully parametric native models in SolidWorks, Siemens NX, Creo, or CATIA with logical feature trees, planes, and editable sketches.
How is accuracy validated before delivery?
How is accuracy validated before delivery?
We run a 3D deviation inspection comparing the reconstructed CAD solid directly against the original 3D scan point cloud, providing a certified 3D deviation report with every delivery.
Need a Legacy Part Reverse Engineered?
Whether it's a discontinued component, an obsolete machine part, or a critical production component with no drawings, APJ 3D can digitise, reconstruct, validate, and document it for manufacturing.
