Datum Based
Inspection Service India
Measure Components Relative to the References That Matter. APJ 3D delivers datum controlled dimensional inspection service India for automotive, aerospace, tooling, precision machining and manufacturing applications using GD&T-driven inspection methodologies.
Without a Datum,
Every Measurement Changes.
Random Point Measurement
Measuring without locking constraints leads to unpredictable, varying results depending on orientation.

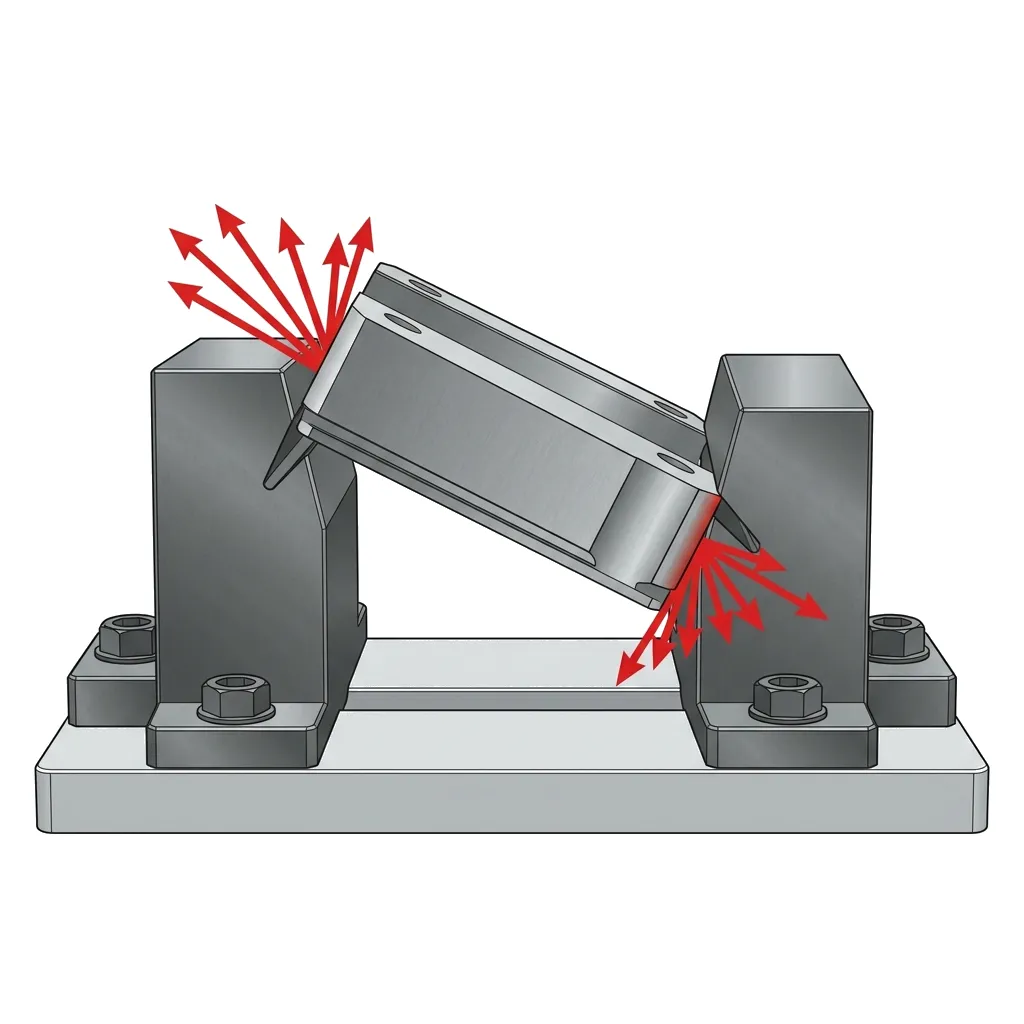

Inconsistent Fixturing
Using generic clamps without adhering to datum targets introduces mechanical stresses and false deviations.

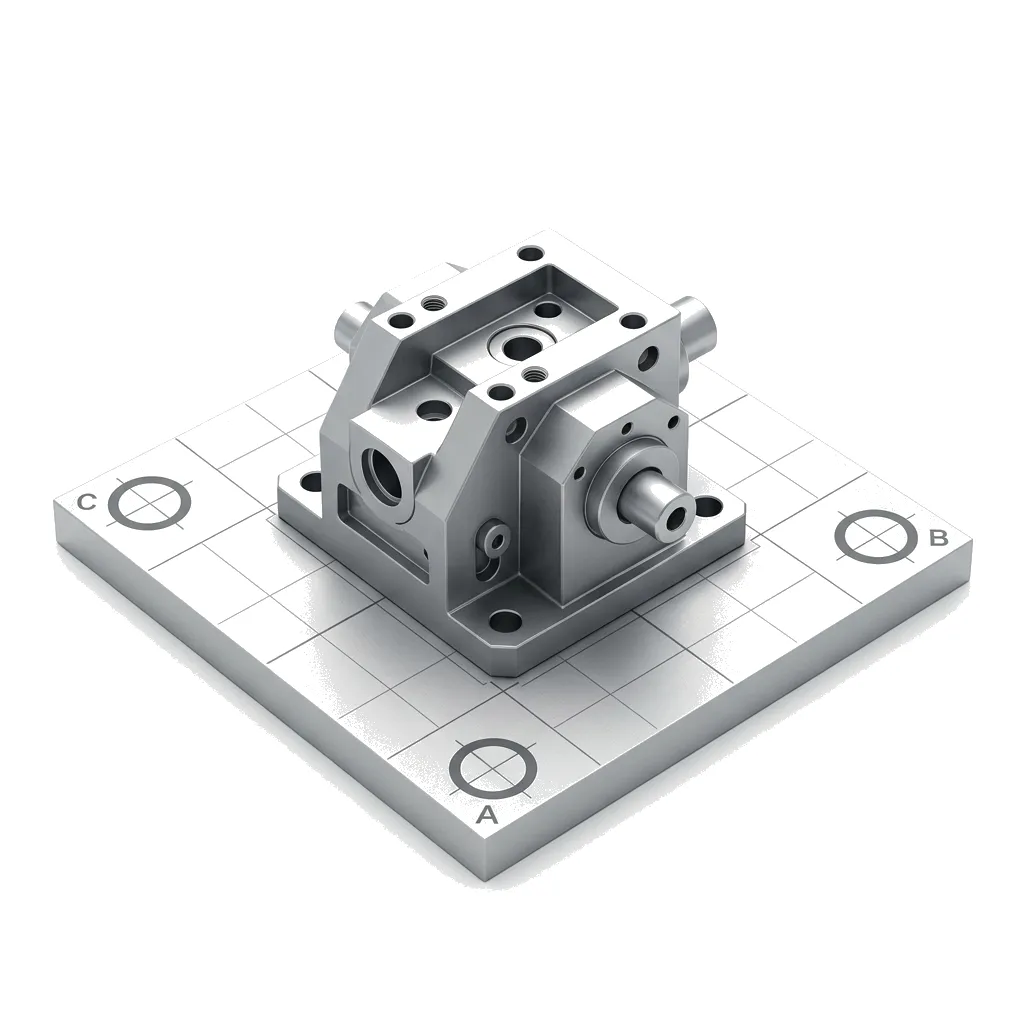

Datum Reference Measurement
Measurements become highly repeatable, absolute, and directly correlate to functional assembly requirements.
The Datum Reference Ecosystem
Primary Datum (A)
Establishes the fundamental base plane, locking 3 degrees of freedom (1 translation, 2 rotations).
Building the Coordinate System
See how applying datum targets locks degrees of freedom to secure the part for accurate inspection.
Unconstrained Space
Part is free-floating with 6 Degrees of Freedom.
Apply Primary Datum (A)
Establishes the base plane. Locks 3 DoF (1 translation, 2 rotations).
Apply Secondary Datum (B)
Establishes orientation axis. Locks 2 DoF (1 translation, 1 rotation).
Apply Tertiary Datum (C)
Establishes final stop. Locks final 1 DoF (translation). Fully constrained.
Inspection Command Center

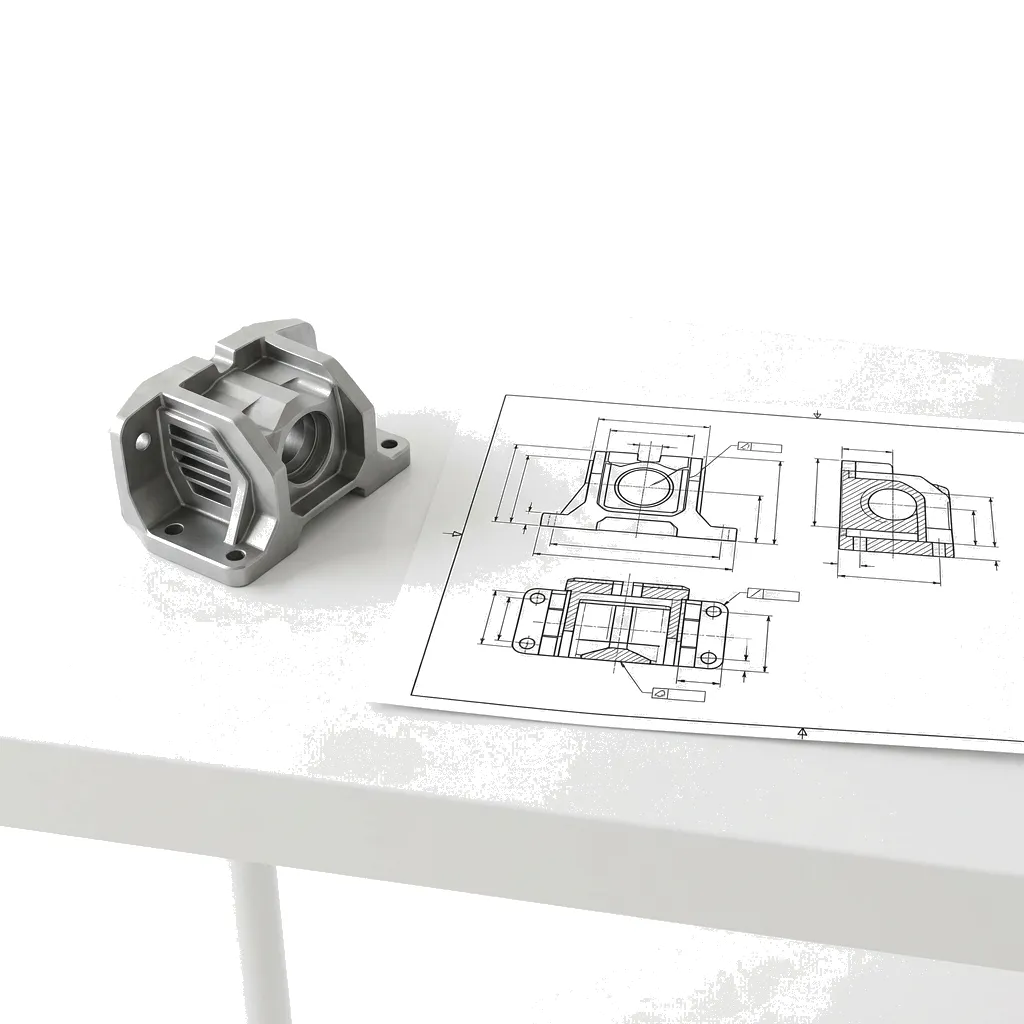

01 Drawing Analysis
Our engineers deeply analyze your 2D drawings and GD&T requirements to identify critical datum reference frames before scanning begins.

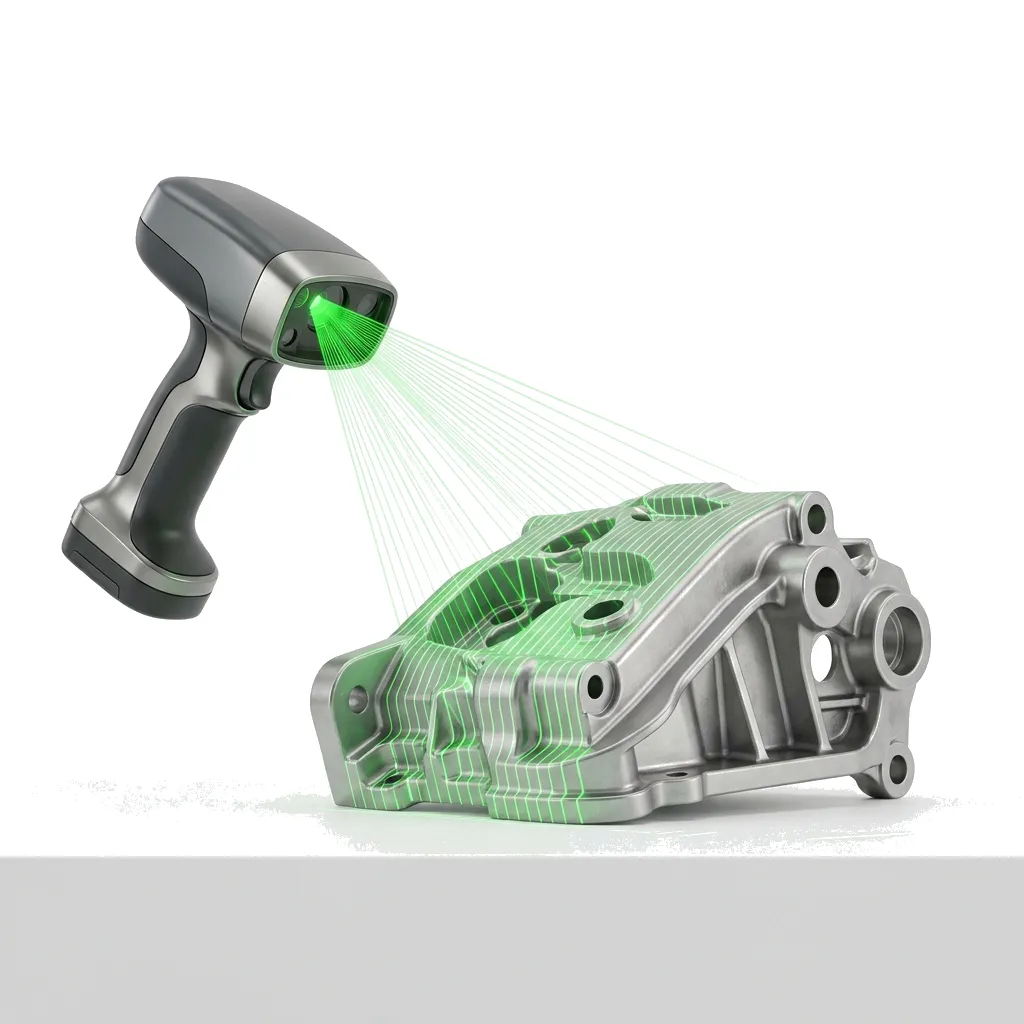

02 3D Scanning
Capturing the physical part with ultra-high precision structured light scanners to create a dense, accurate point cloud representing reality.

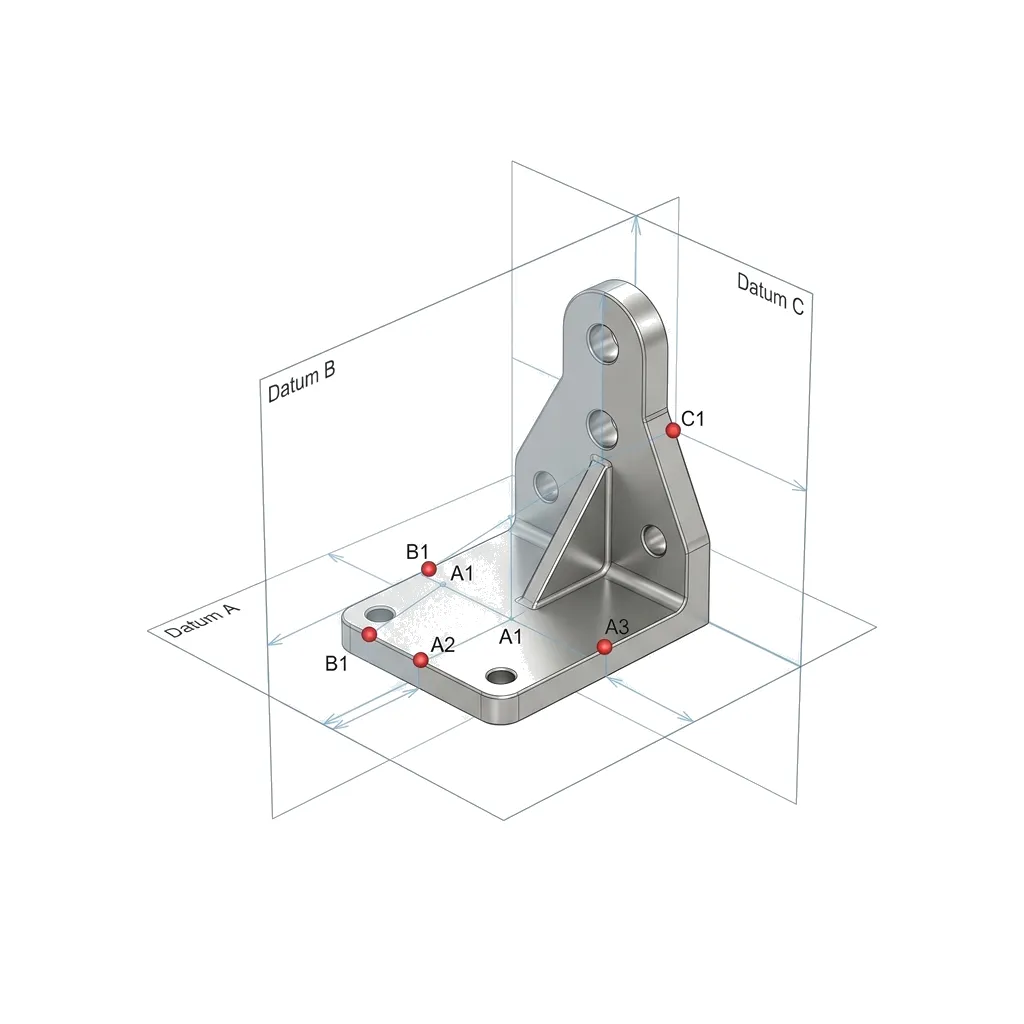

03 Datum Alignment
We digitally align the scanned data to the CAD model strictly using the specified datum targets (A-B-C), accurately locking degrees of freedom.

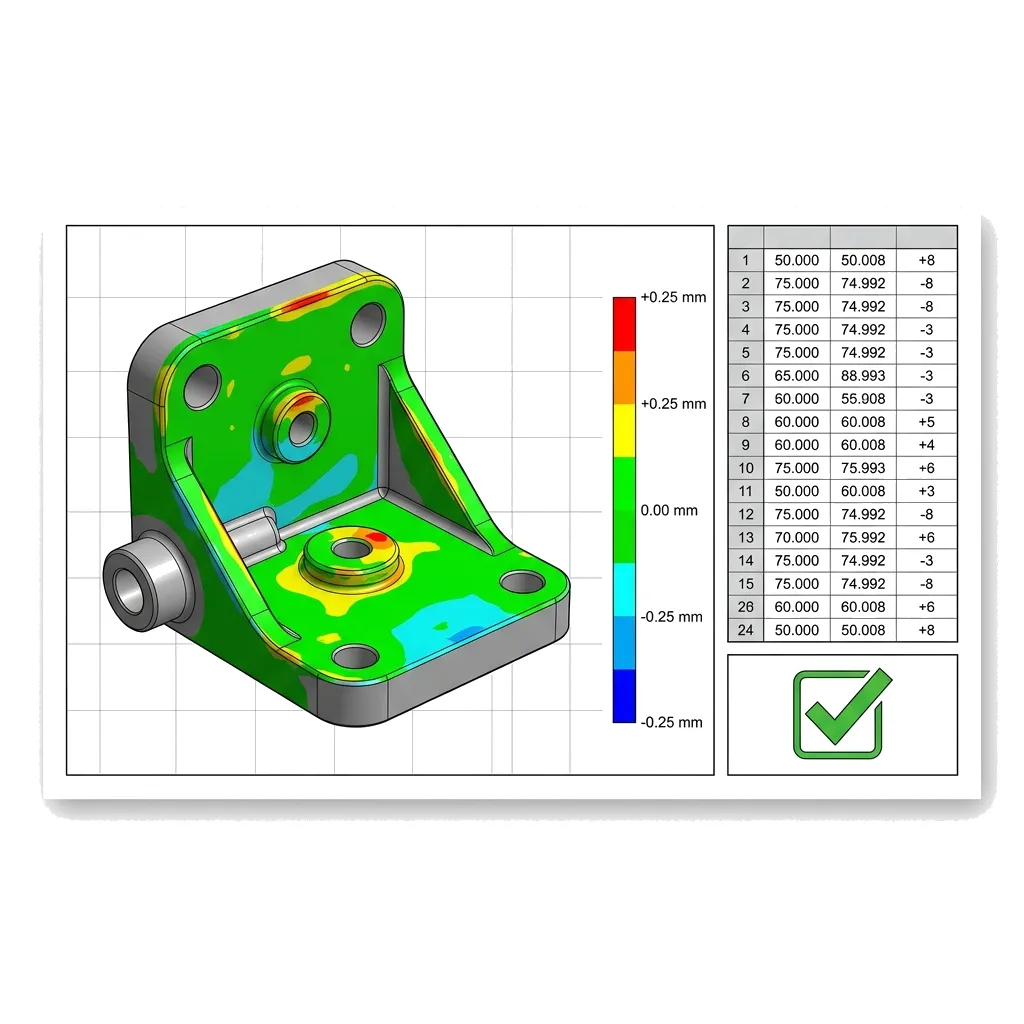

04 GD&T Validation
Extracting geometric features and evaluating tight tolerances like true position, profile, and runout relative to the established datum frame.
Feature Control Capabilities
True Position
Validating the exact location of critical mounting holes and features.
Surface Profile
Checking complex organic surfaces against CAD nominal limits.
Flatness
Ensuring mating faces are perfectly planar to prevent leakage or wobble.
Perpendicularity
Controlling angular deviation between critical assembled faces.
Industries Relying on
Datum Inspection
Aerospace
Automotive
Tooling
Defence
General Manufacturing
Precision Machining
Medical
Digital Engineering Vault

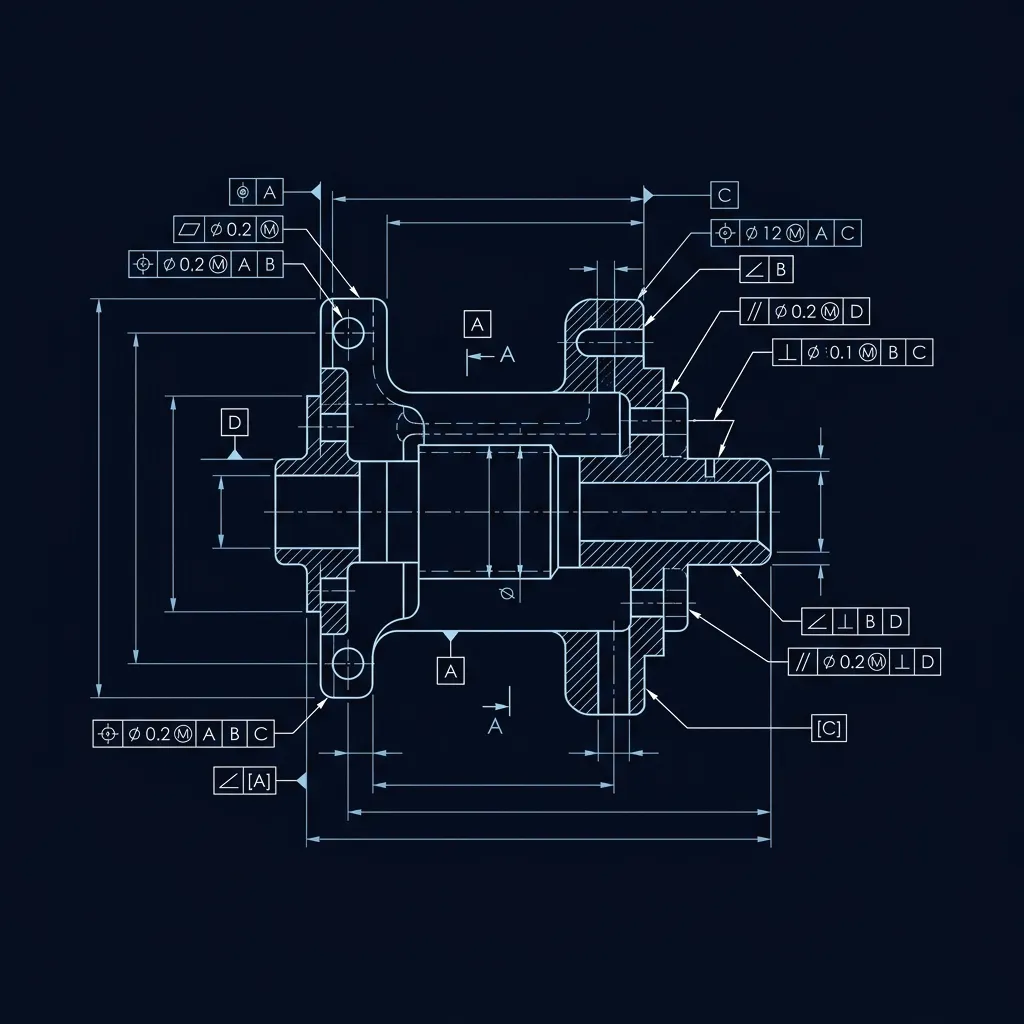

Comprehensive tabular reports showing nominals, tolerances, actuals, and clear Pass/Fail deviations for every GD&T callout on your drawing.

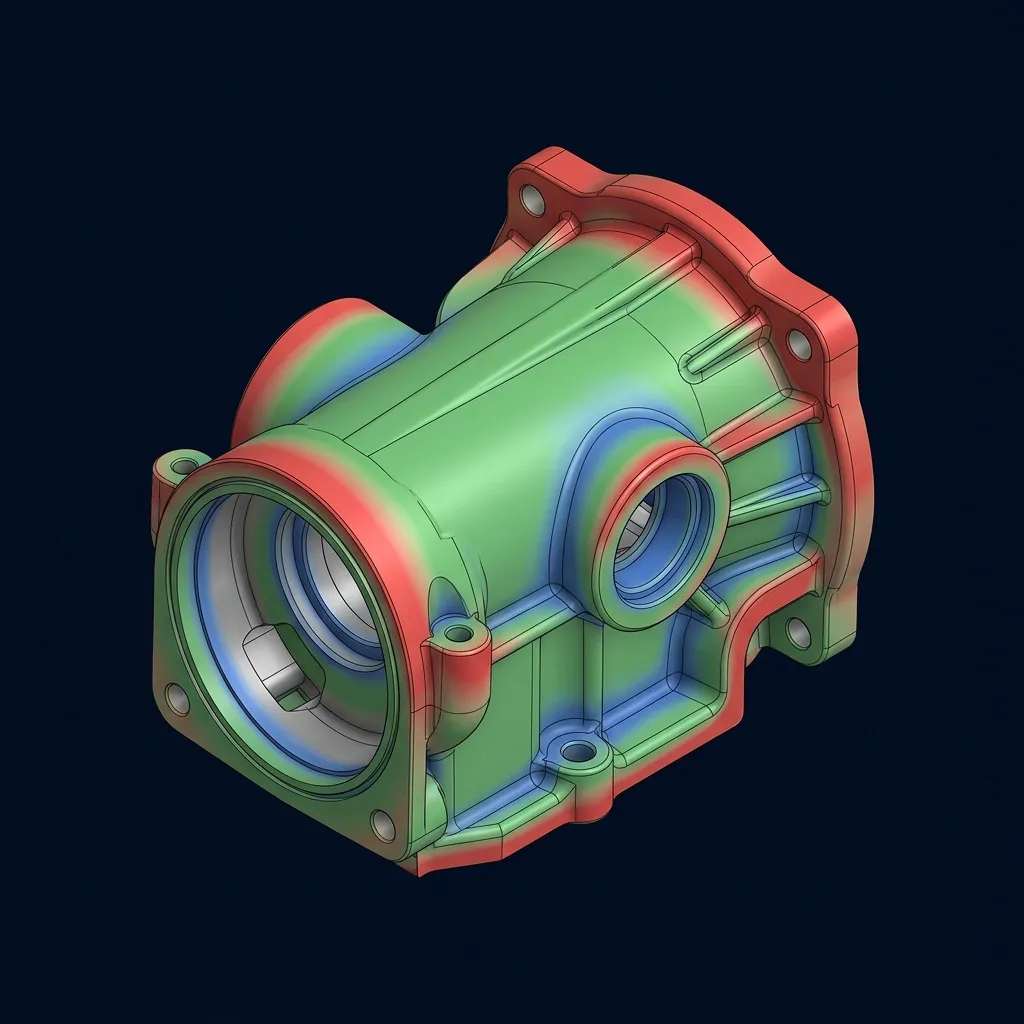

Visual heatmaps aligned strictly to your datum reference frame, instantly revealing warpage, shrinkage, and tooling errors across the entire part.
When Assembly Matters,
Datum Wins.
Standard Best-Fit
Averages out errors mathematically across the whole part. Often incorrectly shows parts as "Passed" even when critical mounting holes are misaligned.
Datum Alignment
Aligns exactly how the part functions in real-world assembly. Concentrates errors accurately where they actually exist based on your drawings.
What is Datum Based Inspection Service India?
Dimensional Inspection is the formal verification of physical components against engineering drawings and CAD models using bridge CMMs, portable articulated arms, optical comparators, and laser trackers.
When to Select This Service
Choose dimensional inspection for First Article Inspection Reports (FAIR), PPAP Level 3 supplier submissions, batch quality audits, and shop-floor fixture alignment adhering to ASME Y14.5 and ISO 1101 standards.
Technical Capabilities & Verification Standards
Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.
| Engineering Parameter | APJ 3D Capability & Precision Range | Compliance Standard / Verification |
|---|---|---|
| Measurement Equipment | Bridge CMM (ZEISS / Renishaw), Portable Romer Arms, Laser Trackers, Vision Measuring Systems | ISO 10360 Precision Compliance |
| Measurement Uncertainty | Bridge CMM: E0 = 1.5 + L/350 µm; Portable Arm: ±0.025 mm; Laser Tracker: ±0.015 mm/m | NABL / ISO 17025 Calibrated Standards |
| GD&T Verification | Full ASME Y14.5 & ISO 1101 evaluation (Profile, True Position, Runout, Parallelism, Perpendicularity) | Automated Inspection Programs |
| Inspection Frameworks | AS9102 FAIR (Aerospace), AIAG PPAP Level 3 (Automotive), ISO 9001 Batch Quality Audits | Standard Ballooned Drawing Reports |
| Inspection Environment | Class 10,000 Temperature & Humidity Controlled Metrology Laboratory (20°C ± 0.5°C) | Standard Reference Metrology Environment |
| Software & Reporting | ZEISS CALYPSO, PolyWorks Inspector, PC-DMIS, Geomagic Control X | Comprehensive Graphical & Tabular PDFs |
| Turnaround Time | 24 to 48 Hours for standard First Article & batch inspection lots | Pan-India On-Site CMM Arm Support |
Frequently Asked Questions
What is included in a First Article Inspection Report (FAIR)?
What is included in a First Article Inspection Report (FAIR)?
Can you inspect parts according to PPAP Level 3 requirements?
Can you inspect parts according to PPAP Level 3 requirements?
Do you provide on-site inspection for large tooling and weld fixtures?
Do you provide on-site inspection for large tooling and weld fixtures?
How do you establish datum reference frames for GD&T inspection?
How do you establish datum reference frames for GD&T inspection?
What turnaround time can we expect for batch inspection?
What turnaround time can we expect for batch inspection?
Every Reliable Measurement Starts With
The Right Reference.
Get datum based inspection, GD&T validation, feature datum inspection and dimensional verification for precision components across India.
