What information is required to start an FEA or CFD simulation?

We need 3D CAD files (STEP/Parasolid), material specifications, operating boundary conditions (forces, pressures, temperatures, constraints), and load cases (static, cyclic, or dynamic impact).

How do you validate the accuracy of simulation results?

We follow NAFEMS simulation guidelines, perform mesh convergence sensitivity studies, apply realistic physical contact formulations, and correlate models against physical test data where available.

How can Moldflow simulation save tooling costs for plastic parts?

Moldflow identifies potential defects like air traps, weld lines in high-stress zones, short shots, and excessive warpage before cutting tool steel, saving weeks of tool rework and thousands of dollars in tooling modifications.

Can you optimize parts for lightweighting and material reduction?

Yes. We perform topology optimization and parametric sizing to redistribute material according to principal stress trajectories, achieving 15% to 40% weight reduction while maintaining target safety factors.

What is included in the final simulation report?

The report provides an executive summary, methodology description, boundary condition diagrams, stress/strain/displacement distribution plots, safety factor evaluation, and clear design modification recommendations.

DIMENSIONAL STABILITY LAB

Mould Flow Warpage and Shrinkage Analysis Services in India

Perfect fill. Imperfect part. Visualize dimensional distortion, shrinkage behavior, cooling imbalance, and geometry deformation before cutting steel.

Get Free Consultation Upload CAD Model

THE WARPAGE STORY

The Dimensional Descent

Perfect Cavity

Stage 1: Perfect Fill

Hover to accelerate cooling phase

Stage 5: Warpage Appears

Differential shrinkage collapses geometry

Distortion Drivers Matrix

Hover an analysis slice to reveal the underlying cause of dimensional instability.

Uneven Thickness

Uneven Wall Thickness

Thick sections cool slower and shrink more than thin sections. This volumetric shrinkage differential pulls the part out of shape.

Cooling Imbalance

Temperature differences between core and cavity halves induce thermal bending. The part bends towards the hotter mold half.

Residual Stress

High injection pressures and abrupt flow changes lock in internal stresses. When ejected, these stresses relax, causing sudden deformation.

Fibre Orientation

Glass fibres align with the flow direction. Plastic shrinks less along the fibre and more across it, causing severe anisotropic shrinkage.

DIGITAL DEFORMATION LAB

Warpage
Explorer

Activate the console below to explore dimensional stability modes.

Diff. Shrinkage

SYS-01: Variation

Cooling Unif.

SYS-02: Temp Dist.

Ejection Drift

SYS-03: Time Var.

Stress Release

SYS-04: Relaxation

MATERIAL KINEMATICS

Fibre Orientation Tunnel

For engineering materials like PA6-GF30 or PP-GF20, standard shrinkage rules do not apply. Glass fibres align with flow paths, causing severe anisotropic shrinkage and unpredictable warpage.

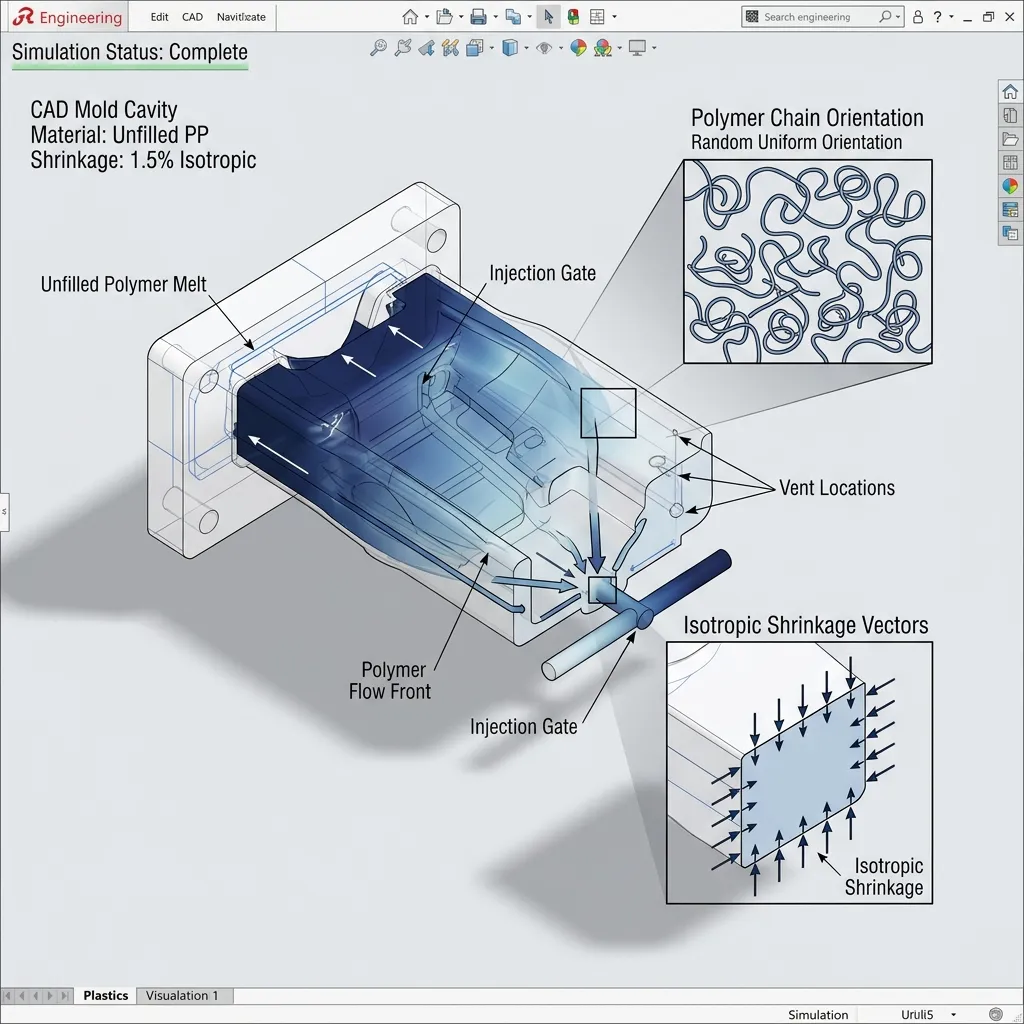

Unfilled Polymer

Glass-Filled (GF30)

Waterline vs Warpage

Compare a standard cooling layout against a conformally optimized layout.

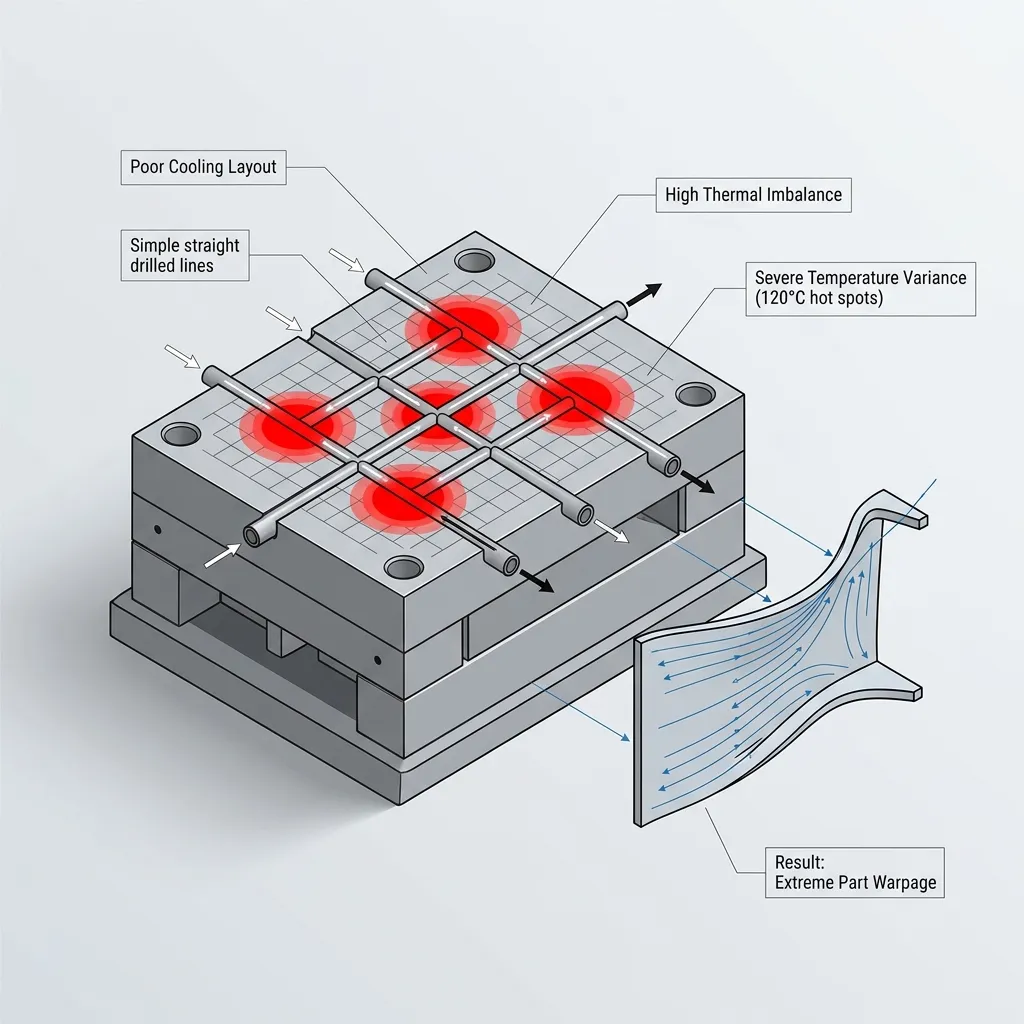

Poor Cooling Layout

Straight drilled lines. High thermal variance. Result: Severe distortion.

120°C

40°C

Optimized Layout

Conformal cooling channels. Uniform heat extraction. Result: Dimensional stability.

REPORTING & DELIVERABLES

Dimensional Stability Dashboard

Distortion Maps

Shrinkage Analysis

Cooling Uniformity

Residual Stress

Tooling Fixes

Mould Warpage & Shrinkage

Post-fill structural analysis →

CFD Flow Simulation

Fluid dynamics services →

3D Scanning for Plastics

Physical tool validation →

What is Mould Flow Warpage & Shrinkage Analysis Services India?

CAE Simulation (FEA & CFD) is the numerical modeling of physical systems to predict structural stress, thermal dissipation, fluid flow, crashworthiness, and dynamic fatigue life under real-world operational loads.

When to Select This Service

Choose CAE simulation during early product development to virtually validate design integrity, optimize part weight, verify safety factors, and eliminate physical prototype failure risks before committing to production tooling.

Engineering Parameter	APJ 3D Capability & Precision Range	Compliance Standard / Verification
Simulation Disciplines	Linear/Non-Linear Structural FEA, Thermal Analysis, CFD Fluid Dynamics, Crash & Impact, Fatigue & Durability, NVH	ISO 9001 / NAFEMS Validated Procedures
Solvers & Software	ANSYS Mechanical, Abaqus, Altair HyperWorks/OptiStruct, Moldflow, OpenFOAM, LS-DYNA	High-Performance Computing (HPC) Clusters
Material Models	Elastic-Plastic metals, Hyperelastic rubbers, Composites, Viscoelastic polymers, Temperature-dependent curves	Tested Material Property Databases
Mould Flow Capabilities	Fill time, injection pressure, weld line prediction, sink marks, cooling circuit efficiency, volumetric shrinkage & warpage	Autodesk Moldflow Insight Validated
Deliverables	Comprehensive Engineering Reports, Von Mises Stress Plots, Factor of Safety (FoS) Maps, Deformation Animations, Optimization STEPs	Actionable Design Recommendation Summaries
Model Scale	From precision micromixers and plastic clips up to full vehicle chassis and industrial equipment weldments	Multi-Million Degree-of-Freedom Meshes
Turnaround Time	3 to 7 business days for standard FEA/CFD studies; 24–48h for urgent gate location & fill checks	Dedicated Senior CAE Analysts

Engineering Parameter

APJ 3D Capability & Precision Range

Compliance Standard / Verification

Simulation Disciplines

Linear/Non-Linear Structural FEA, Thermal Analysis, CFD Fluid Dynamics, Crash & Impact, Fatigue & Durability, NVH

ISO 9001 / NAFEMS Validated Procedures

Solvers & Software

ANSYS Mechanical, Abaqus, Altair HyperWorks/OptiStruct, Moldflow, OpenFOAM, LS-DYNA

High-Performance Computing (HPC) Clusters

Material Models

Elastic-Plastic metals, Hyperelastic rubbers, Composites, Viscoelastic polymers, Temperature-dependent curves

Tested Material Property Databases

Mould Flow Capabilities

Fill time, injection pressure, weld line prediction, sink marks, cooling circuit efficiency, volumetric shrinkage & warpage

Autodesk Moldflow Insight Validated

Deliverables

Comprehensive Engineering Reports, Von Mises Stress Plots, Factor of Safety (FoS) Maps, Deformation Animations, Optimization STEPs

Actionable Design Recommendation Summaries

Model Scale

From precision micromixers and plastic clips up to full vehicle chassis and industrial equipment weldments

Multi-Million Degree-of-Freedom Meshes

Turnaround Time

3 to 7 business days for standard FEA/CFD studies; 24–48h for urgent gate location & fill checks

Dedicated Senior CAE Analysts
